DNNCam Web UI v2 Setup Guide

DNNCam Web UI v2 Setup Guide

This guide will give an overview of the Web UI v2 that can be used to configure camera network, optical, and video settings.
NOTE: Web UI v2 was introduced with the release of Core Services v4.2. If your device is running a Core Services version prior to v4.2, please refer to the Web UI v1 Guide.


The Boulder AI Web UI is a tool for configuring device settings. The Web UI can only be accessed when connected to the same local network as the device. The page will be located at  http://<deviceIP>:5000/.

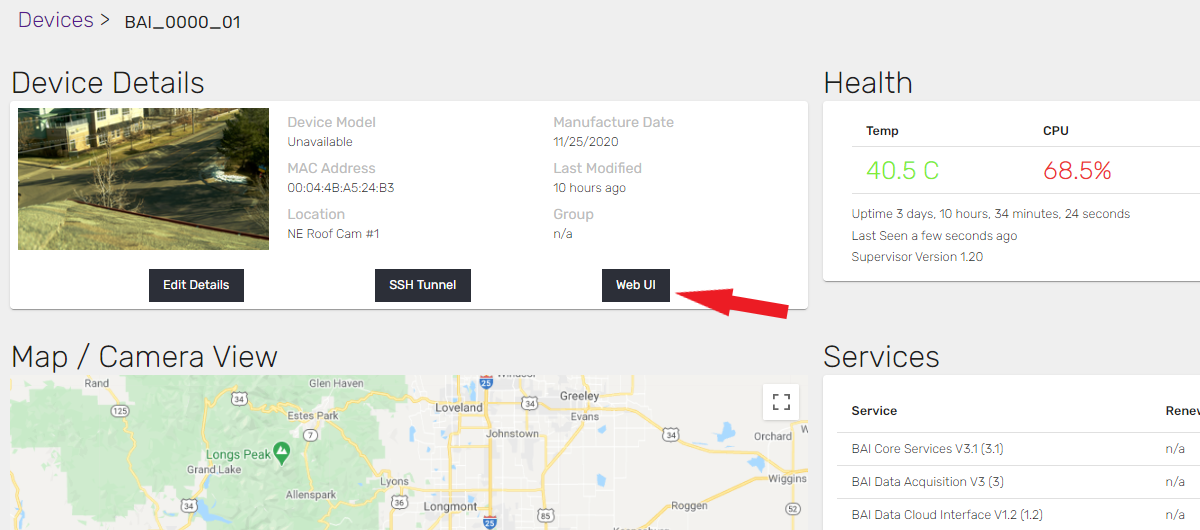

You can avoid having to find the device's IP by navigating to the Web UI via the Boulder AI Platform, in the device's settings page.
accessWebUI












Login

The Web UI will require you to log in. By default, the credentials will be:
Username: admin
Password: baidnncam

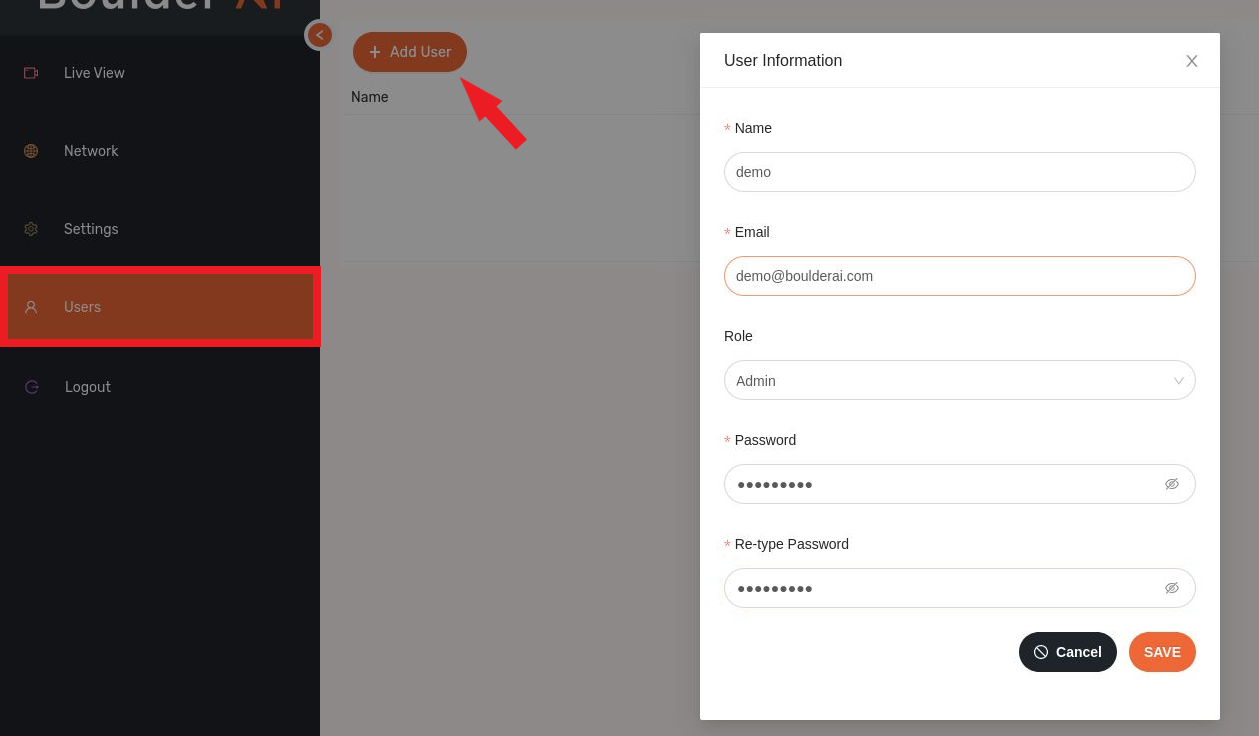

To set a new login, add a user using the 'Users' panel.
'

Live View page

The default Web UI page is the Live View page.

On the right side, there is a menu that will allow you to adjust lens and other settings. Adjust your zoom, focus, and iris using the items in the 'Lens' section. Other image parameters can be modified in the 'Settings' section.


Network page

The network page will allow you to set a Static IP if desired. By default, DHCP is used.

To set a static IP address, choose 'Set IPv4 Address Manually' and enter your desired configuration.













Settings page

The settings page will allow you to change the hostname and NTP server.
